Four-Side-Seal Sachet Machines

Four-side-seal sachet machines that form, fill and seal flat sachets from a single reel of film — one chassis across the JC400 through JC800 on webs up to 880 mm, with a zipper-dedicated build for reclosable sachets.

The Four-Side-Seal Lineup

Six machines share one servo-driven engineering platform: the compact JC400, the wide-web JC600, JC700 and JC800, the zipper-dedicated JC800Z, and the JCC4 edge-curling unit. Web width and output target pick the model; full parameters live on each machine page.
jc800z multi-lane patch packing machine

JC800Z Patch Packing Machine

Production Rate: 50-180 packs/min
Sealing Lanes: 2 (zipper-dedicated build)
Pack Size Range: Length 100-280 mm, width up to 220 mm, height 1-8 mm
Max. Film Width: 880 mm
Max. Film Reel Dia.: 400 mm
Drive: 10-servo system on a TRIO motion controller
Zipper: Double-side zipper heating system
Feeders: 2 rotary soft-gel patch feeders with loading magazines
Printing: 2 ink-wheel printers (ink-jet upgrade available)
Film Handling: 2 servo film-direction correction devices, back-roll correction sensor, auto tension controller
Cutters: Custom bag cutter (round-corner type) and custom easy-tear cutter
Waste Handling: Waste-film curling machine
Packaging Films: ET+OPP, BOPP, CPP, PET+AL and other heat-sealable laminates
Control Set: TRIO PLC and motion controller; MCGS touchscreen; Inovance servos; Schneider contactors, breakers and E-stop; Panasonic eyemark sensor
Compressed Air: 0.3 m³/min
Total Power: 14-15 kW, AC 380 V / 50 Hz, 3-phase
Machine Weight: 2,500 kg
View Machine

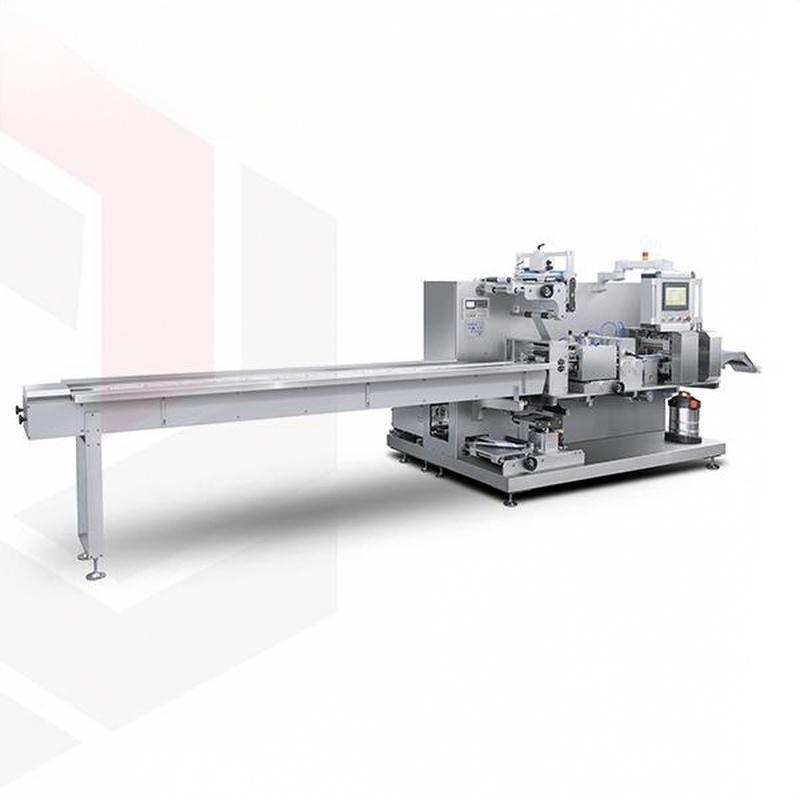

jc400 four-side-seal patch packing machine

JC400 Four-Side-Seal Patch Packing Machine

Production Rate: 80-180 packs/min
Pack Size Range: Length 100-280 mm, width 85-160 mm, height 1-10 mm
Product Height Limit: 10 mm maximum
Max. Film Width: 400 mm
Max. Film Reel Dia.: 400 mm
Packaging Films: ET+OPP, BOPP, CPP, PET+AL and other single- or double-layer heat-sealable laminates
Drive: Full servo control system
Feeder: Custom-made 2-station pushing-type feeder (hand-loaded)
Printing: Ink-wheel printer standard; ink-jet option (20 languages; dates, QR and barcodes, logo marks; up to 406 m/min)
Film Handling: Auto tension controller; 2 servo film-direction correction devices plus master correction sensor on the back film frame
Quality Control: Optical fiber detection with kick-out station
Control Set: Panasonic PLC; MCGS or YiFan touchscreen; Inovance servo motors and drivers; AirTAC/SMC valves; Panasonic photoelectronics
Total Power: 10 kW, AC 380 V / 50 Hz, 3-phase
Machine Weight: 2,000 kg
View Machine
jc700 multi-lane sachet packing machine

JC700 Sachet Packing Machine

Production Rate: 50-180 packs/min
Sealing Lanes: 2-5, built to order
Max. Film Width: 700 mm
Zipper: Optional reclosable zipper
Pack Size Range: Length 100-280 mm, width up to 220 mm, height 1-8 mm
Max. Film Reel Dia.: 400 mm
Drive: 10-servo system on a TRIO motion controller
Printing: 2 ink-wheel printers (ink-jet upgrade available)
Film Handling: 2 servo film-direction correction devices, back-roll correction sensor, auto tension controller
Cutters: Custom bag cutter (round-corner type) and custom easy-tear cutter
Waste Handling: Waste-film curling machine
Packaging Films: ET+OPP, BOPP, CPP, PET+AL and other heat-sealable laminates
Control Set: TRIO PLC and motion controller; MCGS touchscreen; Inovance servos; Schneider contactors, breakers and E-stop; Panasonic eyemark sensor
Compressed Air: 0.3 m³/min
Total Power: 14-15 kW, AC 380 V / 50 Hz, 3-phase
Machine Weight: 2,500 kg
View Machine
jc600 multi-lane sachet packing machine

JC600 Sachet Packing Machine

Production Rate: 50-180 packs/min
Sealing Lanes: 2-4, built to order
Max. Film Width: 600 mm
Zipper: Optional reclosable zipper
Pack Size Range: Length 100-280 mm, width up to 220 mm, height 1-8 mm
Max. Film Reel Dia.: 400 mm
Drive: 10-servo system on a TRIO motion controller
Printing: 2 ink-wheel printers (ink-jet upgrade available)
Film Handling: 2 servo film-direction correction devices, back-roll correction sensor, auto tension controller
Cutters: Custom bag cutter (round-corner type) and custom easy-tear cutter
Waste Handling: Waste-film curling machine
Packaging Films: ET+OPP, BOPP, CPP, PET+AL and other heat-sealable laminates
Control Set: TRIO PLC and motion controller; MCGS touchscreen; Inovance servos; Schneider contactors, breakers and E-stop; Panasonic eyemark sensor
Compressed Air: 0.3 m³/min
Total Power: 14-15 kW, AC 380 V / 50 Hz, 3-phase
Machine Weight: 2,500 kg
View Machine
jc800 multi-lane sachet packing machine

JC800 Sachet Packing Machine

Production Rate: 50-180 packs/min
Sealing Lanes: 2-6, built to order
Max. Film Width: 880 mm
Zipper: Optional reclosable zipper
Pack Size Range: Length 100-280 mm, width up to 220 mm, height 1-8 mm
Max. Film Reel Dia.: 400 mm
Drive: 10-servo system on a TRIO motion controller
Printing: 2 ink-wheel printers (ink-jet upgrade available)
Film Handling: 2 servo film-direction correction devices, back-roll correction sensor, auto tension controller
Cutters: Custom bag cutter (round-corner type) and custom easy-tear cutter
Waste Handling: Waste-film-curling machine
Packaging Films: ET+OPP, BOPP, CPP, PET+AL and other heat-sealable laminates
Control Set: TRIO PLC and motion controller; MCGS touchscreen; Inovance servos; Schneider contactors, breakers and E-stop; Panasonic eyemark sensor
Compressed Air: 0.3 m³/min
Total Power: 14-15 kW, AC 380 V / 50 Hz, 3-phase
Machine Weight: 2,500 kg
View Machine

Not sure which model fits?

Web width follows product size and target output — wider webs carry more pockets per cycle. Every machine page lists its speed band, film width and pack range, or start from the packaging machines overview for the full range.

Frequently Asked Questions

How much does a four-side-seal sachet machine cost?

Web width, dosing group and output target set the price — the JC platform spans compact to wide-web configurations at different levels. Send your dose weight and sachet format and we quote the exact configuration in writing.

What is a four-side-seal sachet?

A pack sealed on all four edges from a flat web — the classic unit-dose format for hard blocks and flat items. Unlike a pillow bag it has no side gusset: flat, rectangular, made for counted doses and connected strips.

Which products run on four-side-seal lines?

Dishwasher tabs, coffee cubes, detergent blocks and solid doses, plus flat items like patches and test strips. Powders and liquids run on the PP pouch series instead. Block format picks the magazine and tooling; the sealing platform stays the same.

Can four-side-seal machines make connected strips?

Yes — perforation between pockets turns the same web into tear-off strips, the retail-box format for effervescent tablets, coffee cubes and pharmaceutical tablets. Strip or loose sachets is a format choice, not a machine change.
