Pouch Packing Machines
Horizontal pouch packing machines for pre-made bags — one continuous process that picks, opens, fills and seals the pouch, with fills from 200 ml to 10 kg.
Horizontal Pouch Packing Machines
The PP series runs pre-made pouches in 4-side seal, doypack (stand-up), spout and zipper formats. Fourteen machines share one engineering platform — from small-sachet lines at 160 packs per minute to 10 kg bulk pouches — each specified to a real production envelope. Full parameters live on each machine page.
PP190P Horizontal Pouch Packing Machine
Production Rate: 3,000 packs/hour (50 packs/min); actual speed depends on product and fill weight
Applicable Materials: Granules, powders, liquids and similar products
Pouch Size Range: Width 50-200 mm, height 100-280 mm
Max. Filling Volume: 1,000 ml (depends on product type)
Filling Stations: 2
Pouch Shape: Flat and stand-up pouches
Air Consumption: 300 L/min
Total Power: 5 kW
Machine Weight: 2,000 kg
Dimensions (L×W×H): 3150 × 1195 × 1120 mm

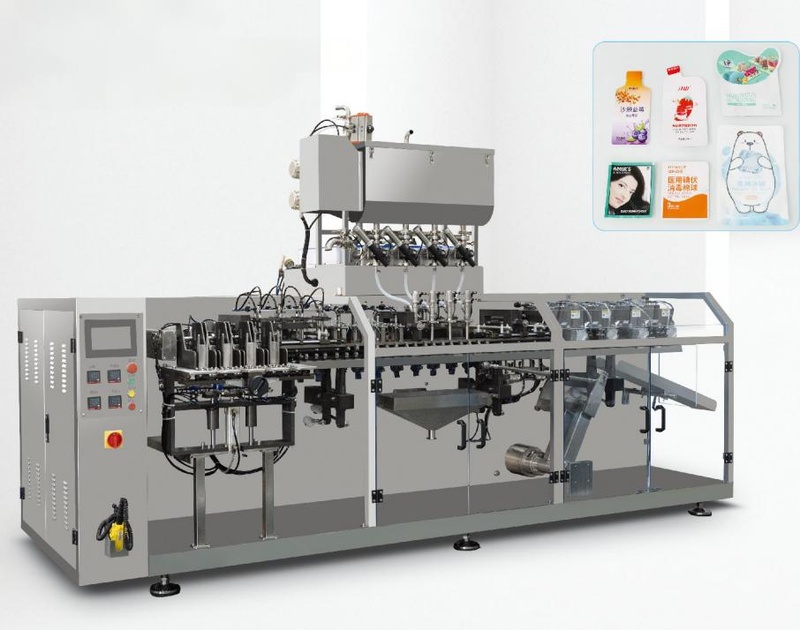

PP180F Horizontal Pouch Packing Machine
Production Rate: 9,600 packs/hour (160 packs/min); actual speed depends on product and fill weight
Applicable Materials: Raw pulp, liquid and viscous sauce products
Pouch Size Range: Width 50-90 mm, height 100-280 mm
Max. Filling Volume: 200 ml (depends on product type)
Filling Accuracy: ±1.5%
Packing Materials: PE, PP, CPP, OPP, PET, PA (NY), VMPET / VMCPP foil pouches, foil paper bags
Total Power: 6 kW
Power Supply: 220V / 380V / 450V
Air Consumption: 0.6 m³/min
Air Pressure: 0.6 MPa
Machine Weight: 2,500 kg
Dimensions (L×W×H): 3650 × 1530 × 1180 mm
Frame Material: 304 stainless steel housing; coated carbon steel frame
Core Components: AirTAC pneumatics; Inovance (China) PLC, VFD and touchscreen; Zhongde (China) vacuum oil pump

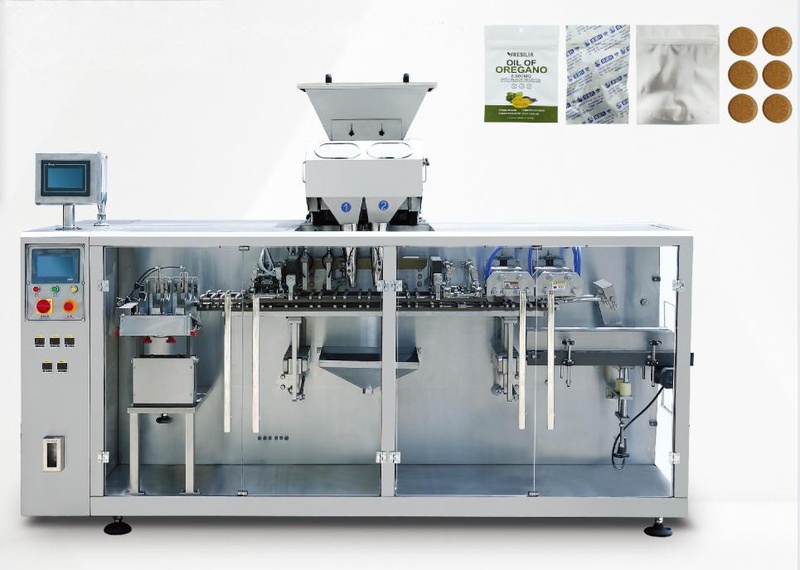

PP180 Horizontal Pouch Packing Machine
Production Rate: 3,000 packs/hour (50 packs/min); actual speed depends on product and fill weight
Applicable Materials: Liquids, granules, pills, capsules and similar products
Pouch Size Range: Width 55-200 mm, height 100-280 mm
Max. Filling Weight: 1,000 g (depends on product type)
Filling Accuracy: ±1.5%
Packing Materials: PE, PP, CPP, OPP, PET, PA (NY), VMPET / VMCPP foil pouches, foil paper bags
Total Power: 4 kW
Power Supply: 220V / 380V / 450V
Air Consumption: 0.6 m³/min
Air Pressure: 0.6 MPa
Machine Weight: 2,000 kg
Dimensions (L×W×H): 2980 × 1345 × 1340 mm
Frame Material: 304 stainless steel housing; coated carbon steel frame
Core Components: SMC (Japan) pneumatics; Siemens PLC, VFD and touchscreen; ORION (Japan) oil-free vacuum pump

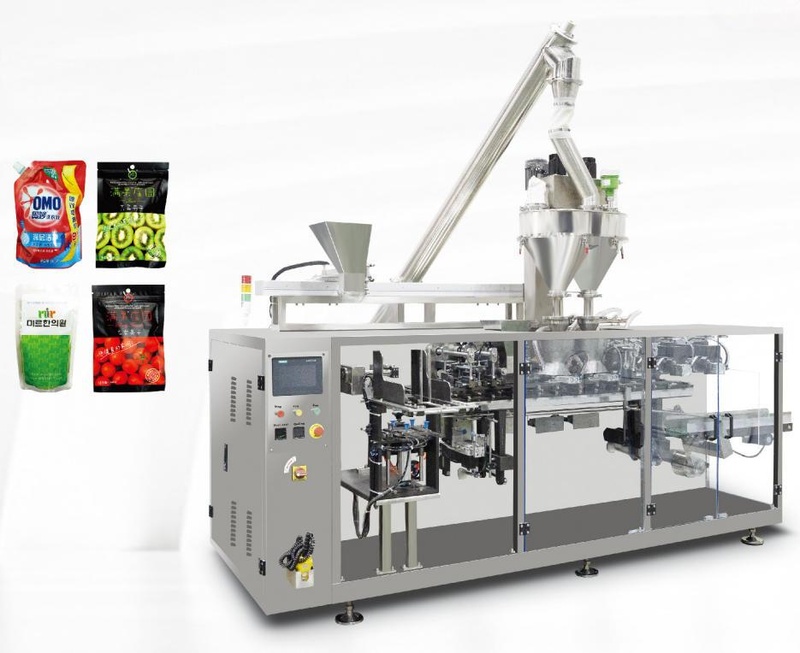

PP320 Horizontal Pouch Packing Machine
Production Rate: 4,200 packs/hour (70 packs/min); actual speed depends on product and fill weight
Applicable Materials: Powders, liquids, solids and similar products
Pouch Size Range: Width 60-160 mm, height 100-280 mm
Max. Filling Volume: 1,000 ml (depends on product type)
Filling Accuracy: ±1.5%
Packing Materials: PE, PP, CPP, OPP, PET, PA (NY), VMPET / VMCPP foil pouches, foil paper bags
Total Power: 7 kW
Power Supply: 220V / 380V / 450V
Air Consumption: 0.6 m³/min
Air Pressure: 0.6 MPa
Machine Weight: 2,500 kg
Dimensions (L×W×H): 3500 × 1000 × 1390 mm
Frame Material: 304 stainless steel housing; coated carbon steel frame
Core Components: SMC (Japan) pneumatics; Siemens PLC, VFD and touchscreen; ORION (Japan) oil-free vacuum pump

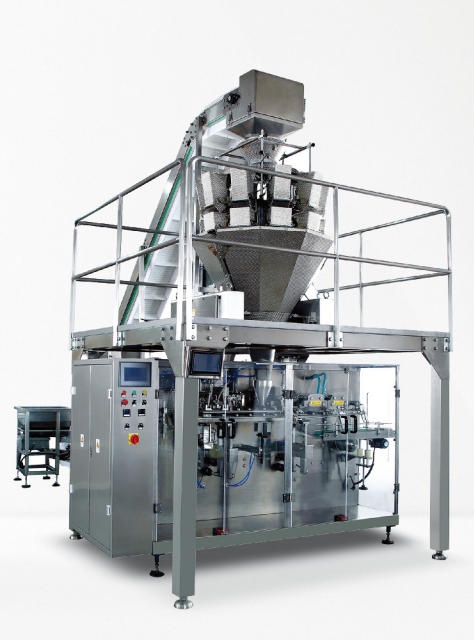

PP190 Horizontal Pouch Packing Machine
Production Rate: 6,000 packs/hour (100 packs/min); actual speed depends on product and fill weight
Applicable Materials: Granules, powders, liquids and similar products
Pouch Size Range: Width 50-95 mm, height 100-280 mm
Max. Filling Volume: 200 ml (depends on product type)
Filling Stations: 2
Pouch Shape: Flat and stand-up pouches
Air Consumption: 300 L/min
Total Power: 5 kW
Machine Weight: 2,000 kg
Dimensions (L×W×H): 3150 × 1195 × 1120 mm

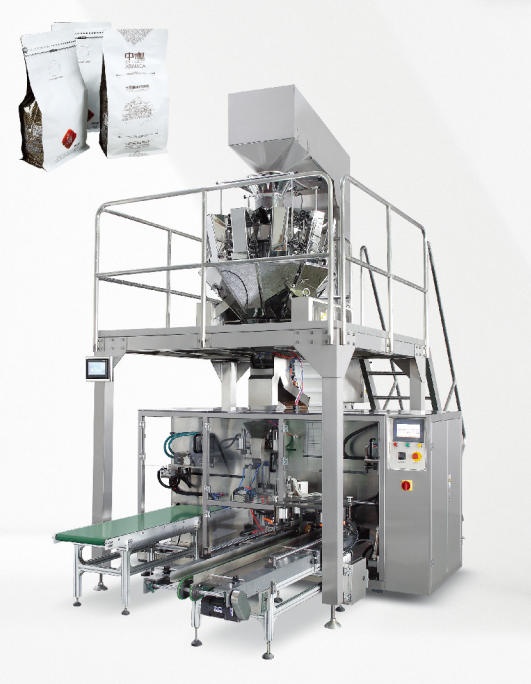

PP880 Side-Gusset Pouch Packing Machine
Production Rate: 900 packs/hour (15 packs/min); actual speed depends on product and fill weight
Applicable Materials: Granules, powders, liquids and similar products
Pouch Size Range: Width 120-440 mm, height 150-650 mm
Max. Filling Volume: 10 kg (depends on product type)
Filling Stations: 1
Pouch Shape: Gusset pouches
Air Consumption: 300 L/min
Total Power: 5 kW
Machine Weight: 800 kg
Dimensions (L×W×H): 2300 × 1000 × 1390 mm

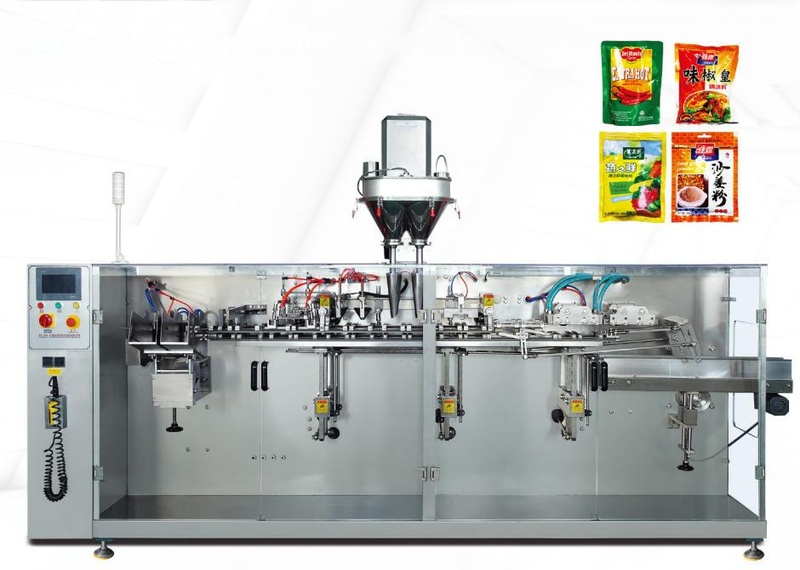

PP400D Horizontal Pouch Packing Machine
Production Rate: 6,000 packs/hour (100 packs/min); actual speed depends on product and fill weight
Pouch Size Range: Width 50-90 mm, height 100-280 mm
Max. Filling Volume: 200 ml (depends on product type)
Applicable Materials: Powders, liquids, granules and similar products
Filling Accuracy: ±1.5%
Packing Materials: PE, PP, CPP, OPP, PET, PA (NY), VMPET / VMCPP foil pouches, foil paper bags
Total Power: 4 kW
Power Supply: 220V / 380V / 450V
Air Consumption: 0.6 m³/min
Air Pressure: 0.6 MPa
Machine Weight: 2,000 kg
Dimensions (L×W×H): 2900 × 1000 × 1360 mm
Frame Material: 304 stainless steel housing; coated carbon steel frame
Core Components: SMC (Japan) pneumatics; Siemens PLC, VFD and touchscreen; ORION (Japan) oil-free vacuum pump

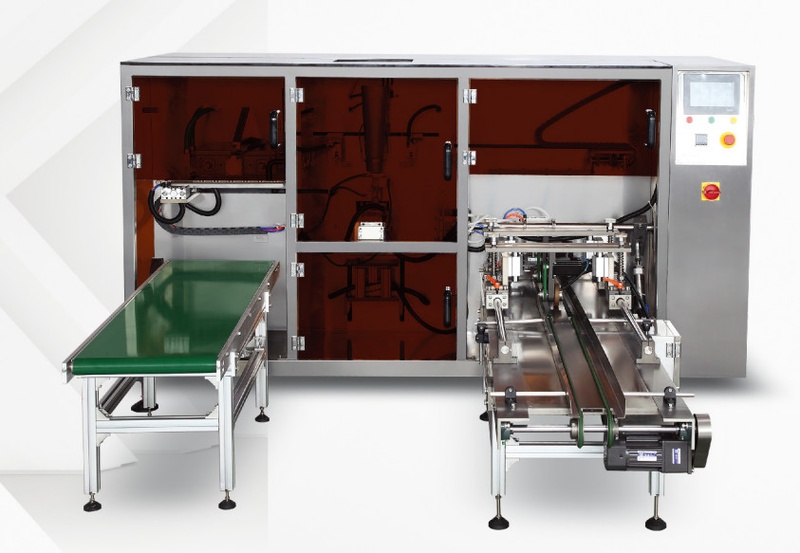

PP880T Horizontal Pouch Packing Machine
Production Rate: 900 packs/hour (15 packs/min); actual speed depends on product and fill weight
Applicable Materials: Granules, liquids, powders and similar products
Pouch Size Range: Width 120-440 mm, height 150-650 mm
Max. Filling Weight: 10 kg (depends on product type)
Filling Accuracy: ±1.5%
Packing Materials: PE, PP, CPP, OPP, PET, PA (NY), VMPET / VMCPP foil pouches, foil paper bags
Total Power: 4 kW
Power Supply: 220V / 380V / 450V
Air Consumption: 0.6 m³/min
Air Pressure: 0.6 MPa
Machine Weight: 800 kg
Dimensions (L×W×H): 2300 × 1000 × 1390 mm
Frame Material: 304 stainless steel housing; coated carbon steel frame
Core Components: AirTAC pneumatics (cylinders, solenoid and vacuum valves); Siemens PLC, VFD and touchscreen; ORION (Japan) vacuum pump

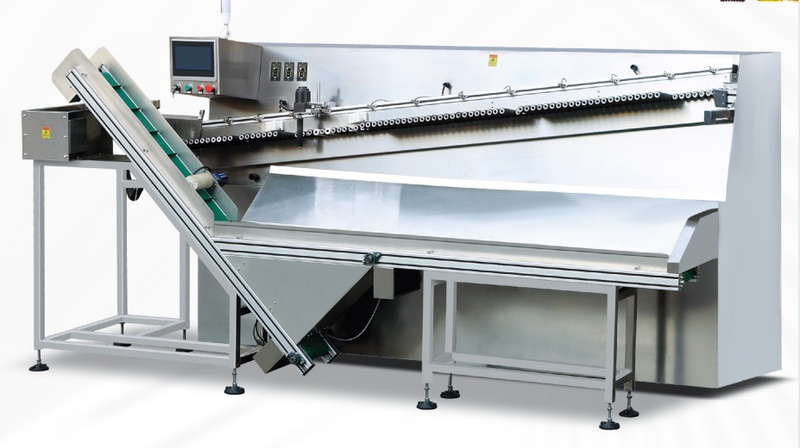

PPMH280 High-Speed Feeding & Arranging Machine
Production Rate: 16,800 packs/hour (280 packs/min)
Applicable Products: Small pouches; liquid / powder / granular stick packs; vacuum packs
Product Size Limits: Strip and flat-rectangular products, length up to 180 mm
Packing Materials: PE, PP, CPP, OPP, PET, PA (NY), VMPET / VMCPP, foil laminates
Roll Diameter: φ26 mm
Total Power: 7 kW
Power Supply: 380V / 50Hz
Machine Weight: 500 kg
Dimensions (L×W×H): 3600 × 1100 × 1700 mm
PP400 Horizontal Pouch Packing Machine
Production Rate: 3,000 packs/hour (50 packs/min); actual speed depends on product and fill weight
Pouch Size Range: Width 55-200 mm, height 100-280 mm
Max. Filling Volume: 1,000 ml (depends on product type)
Applicable Materials: Powders, liquids, granules and similar products
Filling Accuracy: ±1.5%
Packing Materials: PE, PP, CPP, OPP, PET, PA (NY), VMPET / VMCPP foil pouches, foil paper bags
Total Power: 4 kW
Power Supply: 220V / 380V / 450V
Air Consumption: 0.6 m³/min
Air Pressure: 0.6 MPa
Machine Weight: 2,000 kg
Dimensions (L×W×H): 2900 × 1000 × 1360 mm
Frame Material: 304 stainless steel housing; coated carbon steel frame
Core Components: SMC (Japan) pneumatics; Siemens PLC, VFD and touchscreen; ORION (Japan) oil-free vacuum pump

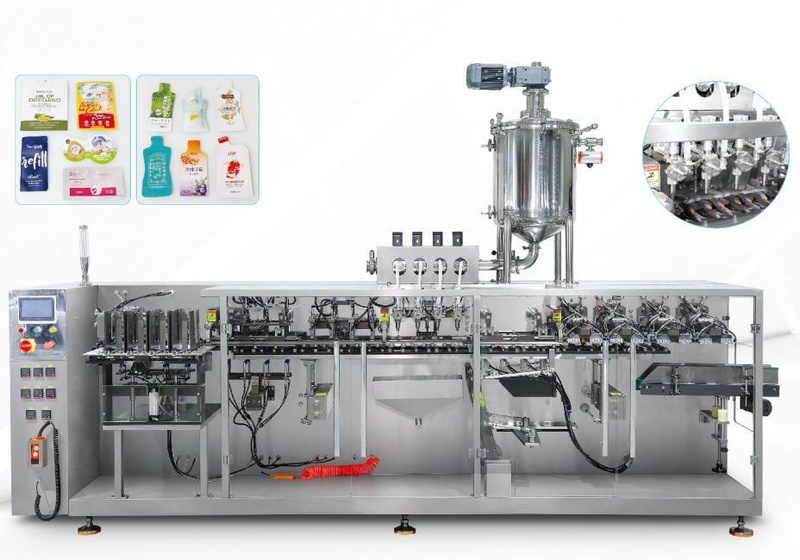

PP200F Horizontal Pouch Packing Machine
Production Rate: 8,400 packs/hour (140 packs/min); actual speed depends on product and fill weight
Applicable Materials: Raw slurry, liquid and paste products
Pouch Size Range: Width 50-100 mm, height 100-280 mm
Max. Filling Volume: 300 ml (depends on product type)
Filling Accuracy: ±1.5%
Packing Materials: PE, PP, CPP, OPP, PET, PA (NY), VMPET / VMCPP foil pouches, foil paper bags
Total Power: 6 kW
Power Supply: 220V / 380V / 450V
Air Consumption: 0.6 m³/min
Air Pressure: 0.6 MPa
Machine Weight: 2,600 kg
Dimensions (L×W×H): 4000 × 1270 × 1535 mm
Frame Material: 304 stainless steel housing; coated carbon steel frame
Core Components: SMC (Japan) pneumatics; Siemens PLC, VFD and touchscreen; ORION (Japan) oil-free vacuum pump
PP180D Horizontal Pouch Packing Machine
Production Rate: 6,000 packs/hour (100 packs/min); actual speed depends on product and fill weight
Applicable Materials: Liquids, granules, pills, capsules and similar products
Pouch Size Range: Width 50-90 mm, height 100-280 mm
Max. Filling Weight: 200 g (depends on product type)
Filling Accuracy: ±1.5%
Packing Materials: PE, PP, CPP, OPP, PET, PA (NY), VMPET / VMCPP foil pouches, foil paper bags
Total Power: 4 kW
Power Supply: 220V / 380V / 450V
Air Consumption: 0.6 m³/min
Air Pressure: 0.6 MPa
Machine Weight: 2,000 kg
Dimensions (L×W×H): 2980 × 1345 × 1340 mm
Frame Material: 304 stainless steel housing; coated carbon steel frame
Core Components: SMC (Japan) pneumatics; Siemens PLC, VFD and touchscreen; ORION (Japan) oil-free vacuum pump

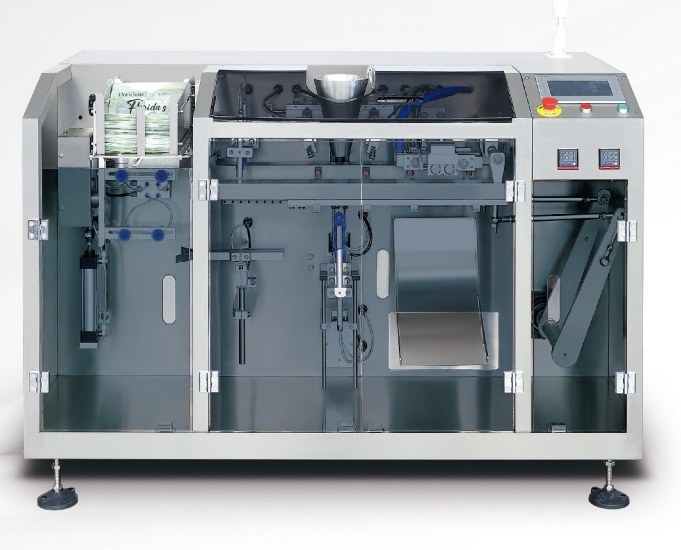

PP420F Horizontal Pouch Packing Machine
Production Rate: 1,800 packs/hour (30 packs/min); actual speed depends on product and fill weight
Applicable Materials: Bag-in-bag, liquid, sauce/paste, solid and powder products
Pouch Size Range: Width 80-210 mm, height 100-300 mm
Max. Filling Volume: 1,000 ml (depends on product type)
Filling Accuracy: ±1.5%
Packing Materials: PE, PP, CPP, OPP, PET, PA (NY), VMPET / VMCPP foil pouches, foil paper bags
Total Power: 4 kW
Power Supply: 220V / 380V / 450V
Air Consumption: 0.6 m³/min
Air Pressure: 0.6 MPa
Machine Weight: 500 kg
Dimensions (L×W×H): 1503 × 823 × 1000 mm
Frame Material: 304 stainless steel housing; coated carbon steel frame

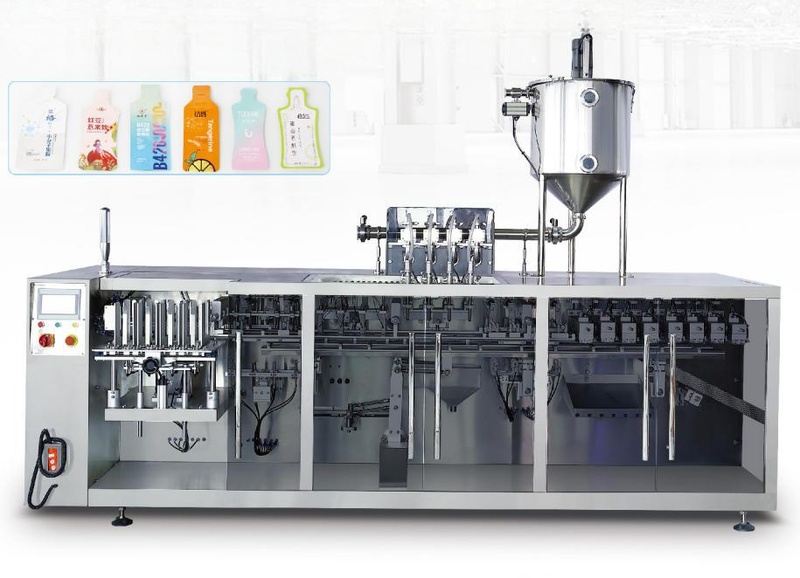

PP180FS Horizontal Pouch Packing Machine
Production Rate: 9,600 packs/hour (160 packs/min); actual speed depends on product and fill weight
Applicable Materials: Raw pulp, liquid and sauce/paste products
Pouch Size Range: Width 50-90 mm, height 100-280 mm
Max. Filling Weight: 200 g (depends on product type)
Filling Accuracy: ±1.5%
Packing Materials: PE, PP, CPP, OPP, PET, PA (NY), VMPET / VMCPP foil pouches, foil paper bags
Total Power: 6 kW
Power Supply: 220V / 380V / 450V
Air Consumption: 0.6 m³/min
Air Pressure: 0.6 MPa
Machine Weight: 2,600 kg
Dimensions (L×W×H): 3650 × 1530 × 1180 mm
Frame Material: 304 stainless steel housing; coated carbon steel frame
Core Components: AirTAC pneumatics; Inovance (China) PLC, VFD and touchscreen; Zhongde (China) vacuum pump
Not sure which pouch machine fits?
Every machine page lists the four honest questions we ask before quoting: speed band, pouch width, fill weight and utilities. You can also start from the packing solutions pages for your industry or browse the full range on the packaging machines overview.
