JC250 Flow Wrapping Machine

What This Machine Does One back seal, one web of film, no pouch magazine. The JC250 is the compact horizontal flow wrapper of the JC line. It pulls laminate from a roll, folds it into a pillow pack with a back seal around your product, and closes the ends with a single sealing jaw —…

jc250 flow wrapping machine
jc250 flow wrapping machine, view 5
jc250 flow wrapping machine, view 6
jc250 flow wrapping machine, view 7
jc250 flow wrapping machine, view 8
jc250 flow wrapping machine, view 9
jc250 flow wrapping machine, view 10

What This Machine Does

One back seal, one web of film, no pouch magazine.

The JC250 is the compact horizontal flow wrapper of the JC line. It pulls laminate from a roll, folds it into a pillow pack with a back seal around your product, and closes the ends with a single sealing jaw — 35 to 150 packs a minute for products up to 100 mm wide and 300 mm long.

The trade-off: web width versus film cost. The 250-class web (90-240 mm) keeps both the reel bill and the machine footprint small, and a single-jaw cutter is the simplest sealing architecture there is to keep alive. What you give up is width: once your product is wider than 100 mm, you need the JC420, not a bigger reel. Every pack feature beyond the basic back seal — hang holes, custom seal patterns, special cutters — is ordered against your product rather than built in.

Best-Fit Products

Runs these well — and what each one needs

  • Biscuits, bread and mooncake portions → sealed at pillow-pack speed with the film path routed to suit the product
  • Boxed and blister-packed pharma → secondary wrap around blister cards and small boxes at up to 150 packs/min
  • Switches, spoons, cards and hard goods → a back seal is all the protection rigid items need
  • Low-profile items from 5 to 30 mm tall → within the sealing envelope without format changes
  • Retail multipacks → counted groups wrapped straight off the infeed

Not sure what these pouch styles look like? Our pouch types guide shows a labeled diagram of each bag style.

Configurations & Options

Routed around your product, not the other way round

  • Film path: film runs above or below the product, chosen per product so the seal never crosses a fragile face
  • Hole punching: Euro slot or round hang holes cut inline
  • Custom work: seal patterns and cutters made to order
  • Films: OPP, PE, PVC and OPP/CPP, PT/PE, KOP/CPP laminates

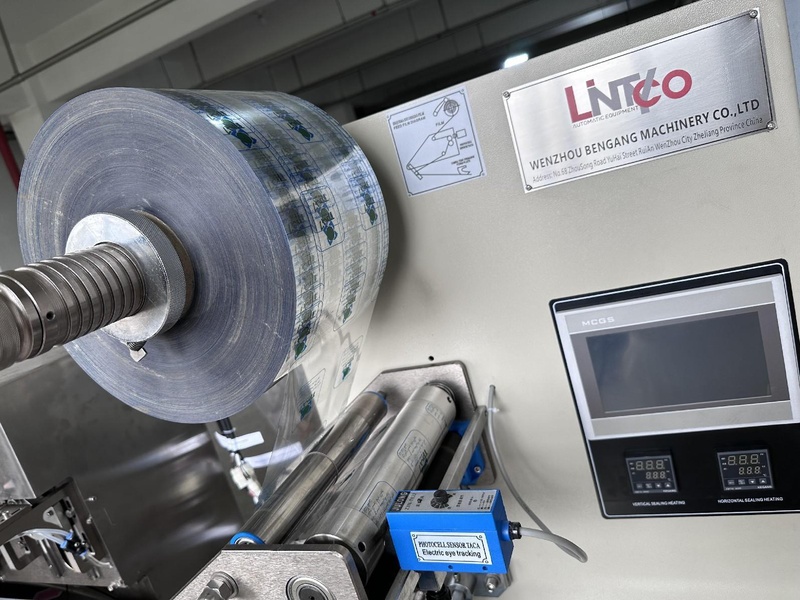

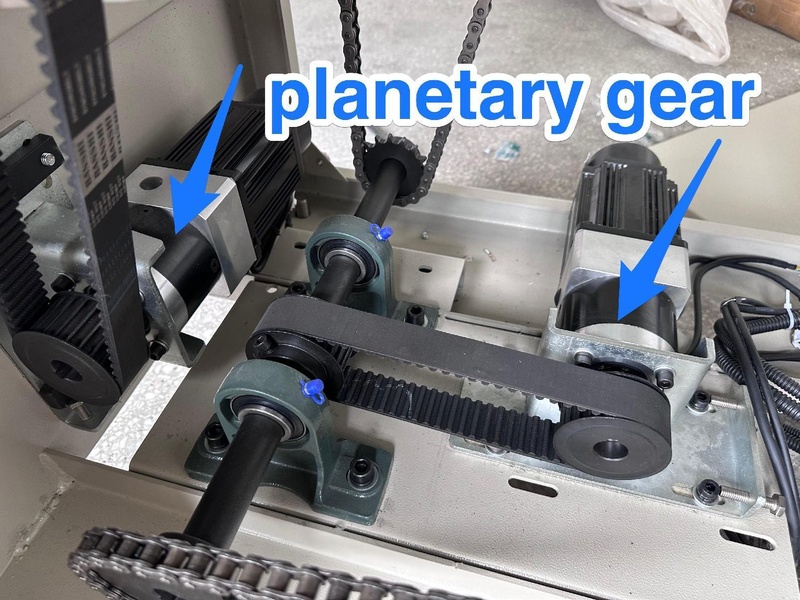

  • Drive: 3 servo motors with planetary gears; film eye-mark sensor registration
  • Control set: in-house-designed PLC with an MCGS touchscreen

Is this the right machine for you?

Four honest questions before you buy

  • Is your product within 30-100 mm wide, 85-300 mm long and 5-30 mm tall? That is this machine’s envelope.
  • Do you need more than 150 packs a minute from one jaw? Then we should talk about the high-speed tier, not stretch this one.
  • Can your floor supply 3.0 kW at 220 V / 50 Hz and tolerate ≤78 dB? That is what it draws and what it sounds like.
  • Do you measure sealing by first-pass yield? The rated bag form qualified rate is ≥97% at 15 N/mm² sealing pressure.

FAQ

The things buyers actually ask.

Film above or below the product — which one?

It depends on the product face you want kept clean and how it feeds. Both paths are available on the same frame; we configure it around your product before the machine ships.

Can it punch hang holes?

Yes — Euro slot or round holes, cut inline. Tell us the hole position at quotation so the tooling is built in from day one.

What yield should I plan around?

The rated bag form qualified rate is ≥97%, with sealing pressure at 15 N/mm². Actual speed depends on your product and film.

JC250 or JC420?

Width. The JC250 seals products up to 100 mm wide from a 240 mm web; the JC420 opens that to 180 mm from a 430 mm web. Same servo architecture, same 35-150 packs/min window.

AT A GLANCE

Production Rate
35-150 packs/min (product-dependent)
Pack Size Range
Product width 30-100 mm, length 85-300 mm, height 5-30 mm
Pack Style
Back-seal pillow packs formed from roll film
Cutter
Single sealing jaw
Film Width
90-240 mm
Packaging Films
OPP, PE, PVC, OPP/CPP, PT/PE, KOP/CPP and similar heat-sealable laminates
Drive
3 servo motors with planetary gears
Bag Form Qualified Rate
≥97%
Sealing Pressure
15 N/mm²
Control Set
In-house-designed PLC; MCGS touchscreen; RiDing servo motors
Machine Noise
≤78 dB
Total Power
3.0 kW, 220 V / 50 Hz
Machine Weight
600 kg
Dimensions (L×W×H)
4000 × 920 × 1500 mm
Get a Quote

Need this machine configured for your line?

Tell us your product size, bag format and target speed — we reply with a layout and quotation.
Get a Quote
