Sauce Sachet Packing Solutions
Ketchup, mayo, soy, dressing — pumpable portions sealed one per sachet. Liquid and paste packing is a filling-and-sealing problem, and the seal is the product.
Why Premade Sachets for Sauce Portions
A sauce sachet holds what it holds because the seal is engineered for the product — viscosity, acidity and temperature all sit in the sealing parameters.
Pumpable Portions, One per Sachet
Liquids and pastes portion into premade sachets on the PP series with piston dosing — the foodservice condiment standard at high counts.
Viscosity Sets the Filling
Thin sauces, thick pastes — the filling system is matched to the actual product, not a nominal category.
Seals Against Acid and Oil
Acidic sauces and oily products attack seals differently. Film and seal parameters are proven against the real recipe.
Hot-Fill Friendly Configurations
Products filled warm demand heat-tolerant sealing — raised as a configuration decision, confirmed per project.
Retail Pouches Beyond the Sachet
Spout and zipper premade pouches carry retail sauce packs — the bottle-alternative format.
Industry References
Ketchup and soy portion sachets at foodservice scale are the worldwide condiment format.
Machines for Sauce and Condiment Packing
One engineering standard across the line — PP pouch machines with piston dosing for portion sachets and retail pouches, flow wrappers for multipacks, cartoners to close the line.
Flow Wrapping (HFFS) — sachet multipacks
Gathered condiment sachets into pillow multipacks for catering.
JC250 Flow Wrapping Machine
Production Rate: 35-150 packs/min (product-dependent)
Pack Size Range: Product width 30-100 mm, length 85-300 mm, height 5-30 mm
Pack Style: Back-seal pillow packs formed from roll film
Cutter: Single sealing jaw
Film Width: 90-240 mm
Packaging Films: OPP, PE, PVC, OPP/CPP, PT/PE, KOP/CPP and similar heat-sealable laminates
Drive: 3 servo motors with planetary gears
Bag Form Qualified Rate: ≥97%
Sealing Pressure: 15 N/mm²
Control Set: In-house-designed PLC; MCGS touchscreen; RiDing servo motors
Machine Noise: ≤78 dB
Total Power: 3.0 kW, 220 V / 50 Hz
Machine Weight: 600 kg
Dimensions (L×W×H): 4000 × 920 × 1500 mm
JC420 Flow Wrapping Machine
Production Rate: 35-150 packs/min (product-dependent)
Pack Size Range: Product width 30-180 mm, length 115-350 mm, height 5-45 mm
Pack Style: Back-seal pillow packs formed from roll film
Cutter: Single sealing jaw
Film Width: 90-430 mm
Packaging Films: OPP, PE, PVC, OPP/CPP, PT/PE, KOP/CPP and similar heat-sealable laminates
Drive: 3 servo motors with planetary gears
Bag Form Qualified Rate: ≥97%
Sealing Pressure: 15 N/mm²
Control Set: In-house-designed PLC; MCGS touchscreen; RiDing servo motors
Machine Noise: ≤78 dB
Total Power: 3.0 kW, 220 V / 50 Hz
Machine Weight: 800 kg
Dimensions (L×W×H): 4220 × 950 × 1600 mm
PP180R Flow Wrapping Machine
Production Rate: 4,800 packs/hour (80 packs/min); actual speed depends on product and fill weight
Applicable Materials: Liquids, slurries, powders and similar products
Packaging Films: PE, PP, CPP, OPP, PET, PA (NY), VMPET, VMCPP foil laminates and aluminum-foil paper bags
Pack Size Range: Width 60-90 mm, height 80-150 mm
Max. Filling Volume: 100 ml (depends on product type)
Filling Accuracy: ±1.5%
Filling Stations: 2
Pack Style: Pillow packs (back seal) formed from roll film
Air Consumption: 0.6 m³/min
Air Pressure: 0.6 MPa
Total Power: 10 kW, 380 V / 50 Hz
Machine Weight: 2,000 kg
Dimensions (L×W×H): 4500 × 970 × 1500 mm
Frame Material: 304 stainless steel covers; carbon-steel body with spray coating
Core Components: Mitsubishi PLC; Weintek touchscreen HMI; Siemens low-voltage electrics; relays by Siemens or Schneider; Italian photo-eye registration
Piston Liquid Filling — the dosing side
The piston filler meters sauces and pastes into the PP pouch line — 30–5000 ml, 6–30 packs/min.

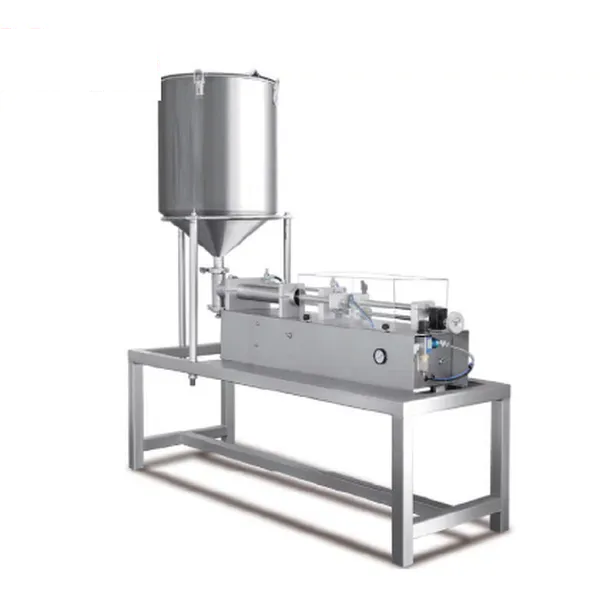

Piston Liquid Filler
Filling Volume: 30–5000 ml
Filling Speed: 6–30 packs/min
Filling Accuracy: ±1%
Nozzle: No-drip filling nozzle
Drive: Fully pneumatic (compressed air)
Pneumatic Components: Airtac
Horizontal Pouch Packing Machines — spout and zipper retail packs
Spout pouches for pourable sauces, zipper for spreads — configuration confirmed per format.
PP180FS Horizontal Pouch Packing Machine
Production Rate: 9,600 packs/hour (160 packs/min); actual speed depends on product and fill weight
Applicable Materials: Raw pulp, liquid and sauce/paste products
Pouch Size Range: Width 50-90 mm, height 100-280 mm
Max. Filling Weight: 200 g (depends on product type)
Filling Accuracy: ±1.5%
Packing Materials: PE, PP, CPP, OPP, PET, PA (NY), VMPET / VMCPP foil pouches, foil paper bags
Total Power: 6 kW
Power Supply: 220V / 380V / 450V
Air Consumption: 0.6 m³/min
Air Pressure: 0.6 MPa
Machine Weight: 2,600 kg
Dimensions (L×W×H): 3650 × 1530 × 1180 mm
Frame Material: 304 stainless steel housing; coated carbon steel frame
Core Components: AirTAC pneumatics; Inovance (China) PLC, VFD and touchscreen; Zhongde (China) vacuum pump
PP200F Horizontal Pouch Packing Machine
Production Rate: 8,400 packs/hour (140 packs/min); actual speed depends on product and fill weight
Applicable Materials: Raw slurry, liquid and paste products
Pouch Size Range: Width 50-100 mm, height 100-280 mm
Max. Filling Volume: 300 ml (depends on product type)
Filling Accuracy: ±1.5%
Packing Materials: PE, PP, CPP, OPP, PET, PA (NY), VMPET / VMCPP foil pouches, foil paper bags
Total Power: 6 kW
Power Supply: 220V / 380V / 450V
Air Consumption: 0.6 m³/min
Air Pressure: 0.6 MPa
Machine Weight: 2,600 kg
Dimensions (L×W×H): 4000 × 1270 × 1535 mm
Frame Material: 304 stainless steel housing; coated carbon steel frame
Core Components: SMC (Japan) pneumatics; Siemens PLC, VFD and touchscreen; ORION (Japan) oil-free vacuum pump
PP180D Horizontal Pouch Packing Machine
Production Rate: 6,000 packs/hour (100 packs/min); actual speed depends on product and fill weight
Applicable Materials: Liquids, granules, pills, capsules and similar products
Pouch Size Range: Width 50-90 mm, height 100-280 mm
Max. Filling Weight: 200 g (depends on product type)
Filling Accuracy: ±1.5%
Packing Materials: PE, PP, CPP, OPP, PET, PA (NY), VMPET / VMCPP foil pouches, foil paper bags
Total Power: 4 kW
Power Supply: 220V / 380V / 450V
Air Consumption: 0.6 m³/min
Air Pressure: 0.6 MPa
Machine Weight: 2,000 kg
Dimensions (L×W×H): 2980 × 1345 × 1340 mm
Frame Material: 304 stainless steel housing; coated carbon steel frame
Core Components: SMC (Japan) pneumatics; Siemens PLC, VFD and touchscreen; ORION (Japan) oil-free vacuum pump
PP420F Horizontal Pouch Packing Machine
Production Rate: 1,800 packs/hour (30 packs/min); actual speed depends on product and fill weight
Applicable Materials: Bag-in-bag, liquid, sauce/paste, solid and powder products
Pouch Size Range: Width 80-210 mm, height 100-300 mm
Max. Filling Volume: 1,000 ml (depends on product type)
Filling Accuracy: ±1.5%
Packing Materials: PE, PP, CPP, OPP, PET, PA (NY), VMPET / VMCPP foil pouches, foil paper bags
Total Power: 4 kW
Power Supply: 220V / 380V / 450V
Air Consumption: 0.6 m³/min
Air Pressure: 0.6 MPa
Machine Weight: 500 kg
Dimensions (L×W×H): 1503 × 823 × 1000 mm
Frame Material: 304 stainless steel housing; coated carbon steel frame
PP400 Horizontal Pouch Packing Machine
Production Rate: 3,000 packs/hour (50 packs/min); actual speed depends on product and fill weight
Pouch Size Range: Width 55-200 mm, height 100-280 mm
Max. Filling Volume: 1,000 ml (depends on product type)
Applicable Materials: Powders, liquids, granules and similar products
Filling Accuracy: ±1.5%
Packing Materials: PE, PP, CPP, OPP, PET, PA (NY), VMPET / VMCPP foil pouches, foil paper bags
Total Power: 4 kW
Power Supply: 220V / 380V / 450V
Air Consumption: 0.6 m³/min
Air Pressure: 0.6 MPa
Machine Weight: 2,000 kg
Dimensions (L×W×H): 2900 × 1000 × 1360 mm
Frame Material: 304 stainless steel housing; coated carbon steel frame
Core Components: SMC (Japan) pneumatics; Siemens PLC, VFD and touchscreen; ORION (Japan) oil-free vacuum pump
PP180F Horizontal Pouch Packing Machine
Production Rate: 9,600 packs/hour (160 packs/min); actual speed depends on product and fill weight
Applicable Materials: Raw pulp, liquid and viscous sauce products
Pouch Size Range: Width 50-90 mm, height 100-280 mm
Max. Filling Volume: 200 ml (depends on product type)
Filling Accuracy: ±1.5%
Packing Materials: PE, PP, CPP, OPP, PET, PA (NY), VMPET / VMCPP foil pouches, foil paper bags
Total Power: 6 kW
Power Supply: 220V / 380V / 450V
Air Consumption: 0.6 m³/min
Air Pressure: 0.6 MPa
Machine Weight: 2,500 kg
Dimensions (L×W×H): 3650 × 1530 × 1180 mm
Frame Material: 304 stainless steel housing; coated carbon steel frame
Core Components: AirTAC pneumatics; Inovance (China) PLC, VFD and touchscreen; Zhongde (China) vacuum oil pump
PP180 Horizontal Pouch Packing Machine
Production Rate: 3,000 packs/hour (50 packs/min); actual speed depends on product and fill weight
Applicable Materials: Liquids, granules, pills, capsules and similar products
Pouch Size Range: Width 55-200 mm, height 100-280 mm
Max. Filling Weight: 1,000 g (depends on product type)
Filling Accuracy: ±1.5%
Packing Materials: PE, PP, CPP, OPP, PET, PA (NY), VMPET / VMCPP foil pouches, foil paper bags
Total Power: 4 kW
Power Supply: 220V / 380V / 450V
Air Consumption: 0.6 m³/min
Air Pressure: 0.6 MPa
Machine Weight: 2,000 kg
Dimensions (L×W×H): 2980 × 1345 × 1340 mm
Frame Material: 304 stainless steel housing; coated carbon steel frame
Core Components: SMC (Japan) pneumatics; Siemens PLC, VFD and touchscreen; ORION (Japan) oil-free vacuum pump
PP320 Horizontal Pouch Packing Machine
Production Rate: 4,200 packs/hour (70 packs/min); actual speed depends on product and fill weight
Applicable Materials: Powders, liquids, solids and similar products
Pouch Size Range: Width 60-160 mm, height 100-280 mm
Max. Filling Volume: 1,000 ml (depends on product type)
Filling Accuracy: ±1.5%
Packing Materials: PE, PP, CPP, OPP, PET, PA (NY), VMPET / VMCPP foil pouches, foil paper bags
Total Power: 7 kW
Power Supply: 220V / 380V / 450V
Air Consumption: 0.6 m³/min
Air Pressure: 0.6 MPa
Machine Weight: 2,500 kg
Dimensions (L×W×H): 3500 × 1000 × 1390 mm
Frame Material: 304 stainless steel housing; coated carbon steel frame
Core Components: SMC (Japan) pneumatics; Siemens PLC, VFD and touchscreen; ORION (Japan) oil-free vacuum pump
Complete the Line — cartoning, blister and sleeving
Cartoning takes counted sachets into shelf-ready cases — one line, one partner. The line does not end at the seal — carton with JC130 or JCH200, blister-pack with JCP100, JCP180 or JCP270, sleeve with JCJ130 or JCS130.
JC130 Horizontal Cartoning Machine
Production Rate: 20-60 cartons/min (carton- and product-dependent)
Carton Material: 250-400 g/m² board
Carton Size Range (L×W×H): 70-210 mm × 60-150 mm × 15-60 mm
Medical-Build Window: Quoted medical build verified at 80-110 × 80-110 × 30-90 mm — checked per carton
Carton Styles: Tuck-in, auto-lock bottom, hang-tab
Feeding: 4-station product auto feeder; 5- and 10-station feeders to order; carton erecting, insertion and sealing
Options: Leaflet folding device; glue-sealing unit; single-side label sealing unit
Rejection: Auto-reject for cartons missing product or leaflet; overload auto-stop
Control Set: Siemens PLC, touchscreen, frequency converter and servo; SMC valves, cylinders, vacuum and air preparation; Sick and Omron sensors
Compressed Air: ≥0.6 MPa, 120-160 L/min
Total Power: 1.5 kW, 220/380 V / 50 Hz
Machine Weight: 2,800 kg
Dimensions (L×W×H): 4620 × 1210 × 1800 mm
JCH200 High-Speed Cartoning Machine
Production Rate: 200 cartons/min
Carton Styles: Tuck-in, auto-lock bottom, hang-tab
Product Family: Coffee and snack pouches, sachet multipacks, bottled pharma, kit sets — the JC cartoning range
Configuration: Built to order around your carton and product
How to Choose a Sauce Packing Machine
Eight decisions frame the specification. Work them in order and the machine ends up matched to the recipe, not the other way round.
1. Product Type
Product viscosity and temperature at fill time — the two decisions everything else follows.
2. Throughput
Sachet counts per minute — the piston dosing speed sets the output.
3. Film Material
Acid- and oil-resistant laminates; print registration for brand sachets.
4. Seal Technology
Product in the seal zone is not acceptable — the design keeps filling and sealing apart.
5. Package Format
Sachet, spout pouch or both — channel decides.
6. Hygiene and Food Contact
Food-contact and hot-fill rules per market.
7. Configuration and Delivery
Filling integration is the long-lead item — start it early.
8. Run the Numbers
Shortlist machines before you quote — enter product size, format and target output in the free selector at tool.path-pack.com; it returns matching machine families and film widths in one pass.
Frequently Asked Questions
Can the same machine run ketchup and mayo?
With changeover and a filling review, yes — viscosity difference is a configuration question, not a machine-family question.
How do you seal without sauce in the seal zone?
Filling is dosed and staged away from the sealing jaws; the seal closes on clean film. It is the core design, verified with your product before shipment.
Do you pack hot sauces?
Hot-fill configurations exist — sealing and contact materials follow the fill temperature. Confirmed per project, not assumed.
What about retail squeeze pouches?
Spout premade pouches are the retail format — filling and sealing configured per pouch and cap size.
How much does a sauce packaging machine cost?
The liquid dosing group, viscosity range and the sachet-versus-pouch decision dominate the price. Send your sauce viscosity and dose volume for a written quotation.
Why Path Pack
We start with the product, not the machine. Every project runs through the same nine-step engineering process — product, format, film, speed, feeding, sealing, structure, integration, testing — before a configuration is quoted.
Your sauces run on real machines with your film at your target speed before anything ships. Seal integrity against your recipe is proven, not promised.
Evaluate your requirements with our online tools: the machine finder and bag calculator narrow the configuration before you ever talk to us.
English
Spanish
French
German
Korean
Russian
Italian
Arabic
