CBD & Edibles Packing Solutions
CBD gummies, edibles, supplement powders — regulated products where the pack carries the compliance story. Format follows jurisdiction; the machine follows the format.
Packing CBD Edibles and Supplement Formats
Adult products in regulated markets live and die on packaging decisions — resealability, dose definition and child-resistance considerations are specification inputs, not afterthoughts.
Gummies in Singles and Multipacks
One gummy per flow-wrapped pillow pack for single-dose formats, counted multipacks for retail — the same routes as mainstream confectionery.
Powder Portions in Sachets
CBD and supplement powders portion into premade sachets on the PP series with auger dosing — dose-defined, print-registered.
Child-Resistant Considerations
Child-resistance is a pack-and-closure decision layered on the format — we configure to your jurisdiction's requirement, not a generic claim.
Batch and Dose on Every Pack
Print registration carries dose, batch and lot — the traceability layer regulators check first.
Pouches for Regulated Retail
Zipper pouches with reclosure for multi-use formats — the retail shelf format for the category.
Industry References
Single-dose sachets and resealable pouches are the two formats regulators look for in edibles — the pack follows the jurisdiction.
Machines for CBD and Edible Packing
One engineering standard across the line — flow wrappers for gummies, PP pouch machines with auger dosing for powders, pouch machines for regulated retail.
Flow Wrapping (HFFS)
Single-dose pillow packs and counted retail multipacks.
JC250 Flow Wrapping Machine
Production Rate: 35-150 packs/min (product-dependent)
Pack Size Range: Product width 30-100 mm, length 85-300 mm, height 5-30 mm
Pack Style: Back-seal pillow packs formed from roll film
Cutter: Single sealing jaw
Film Width: 90-240 mm
Packaging Films: OPP, PE, PVC, OPP/CPP, PT/PE, KOP/CPP and similar heat-sealable laminates
Drive: 3 servo motors with planetary gears
Bag Form Qualified Rate: ≥97%
Sealing Pressure: 15 N/mm²
Control Set: In-house-designed PLC; MCGS touchscreen; RiDing servo motors
Machine Noise: ≤78 dB
Total Power: 3.0 kW, 220 V / 50 Hz
Machine Weight: 600 kg
Dimensions (L×W×H): 4000 × 920 × 1500 mm
JC420 Flow Wrapping Machine
Production Rate: 35-150 packs/min (product-dependent)
Pack Size Range: Product width 30-180 mm, length 115-350 mm, height 5-45 mm
Pack Style: Back-seal pillow packs formed from roll film
Cutter: Single sealing jaw
Film Width: 90-430 mm
Packaging Films: OPP, PE, PVC, OPP/CPP, PT/PE, KOP/CPP and similar heat-sealable laminates
Drive: 3 servo motors with planetary gears
Bag Form Qualified Rate: ≥97%
Sealing Pressure: 15 N/mm²
Control Set: In-house-designed PLC; MCGS touchscreen; RiDing servo motors
Machine Noise: ≤78 dB
Total Power: 3.0 kW, 220 V / 50 Hz
Machine Weight: 800 kg
Dimensions (L×W×H): 4220 × 950 × 1600 mm
PP180R Flow Wrapping Machine
Production Rate: 4,800 packs/hour (80 packs/min); actual speed depends on product and fill weight
Applicable Materials: Liquids, slurries, powders and similar products
Packaging Films: PE, PP, CPP, OPP, PET, PA (NY), VMPET, VMCPP foil laminates and aluminum-foil paper bags
Pack Size Range: Width 60-90 mm, height 80-150 mm
Max. Filling Volume: 100 ml (depends on product type)
Filling Accuracy: ±1.5%
Filling Stations: 2
Pack Style: Pillow packs (back seal) formed from roll film
Air Consumption: 0.6 m³/min
Air Pressure: 0.6 MPa
Total Power: 10 kW, 380 V / 50 Hz
Machine Weight: 2,000 kg
Dimensions (L×W×H): 4500 × 970 × 1500 mm
Frame Material: 304 stainless steel covers; carbon-steel body with spray coating
Core Components: Mitsubishi PLC; Weintek touchscreen HMI; Siemens low-voltage electrics; relays by Siemens or Schneider; Italian photo-eye registration
Auger Powder Filling — the dosing side
The auger filler meters supplement powders into the PP pouch line — 10–1000 g, 40–120 bags/min.

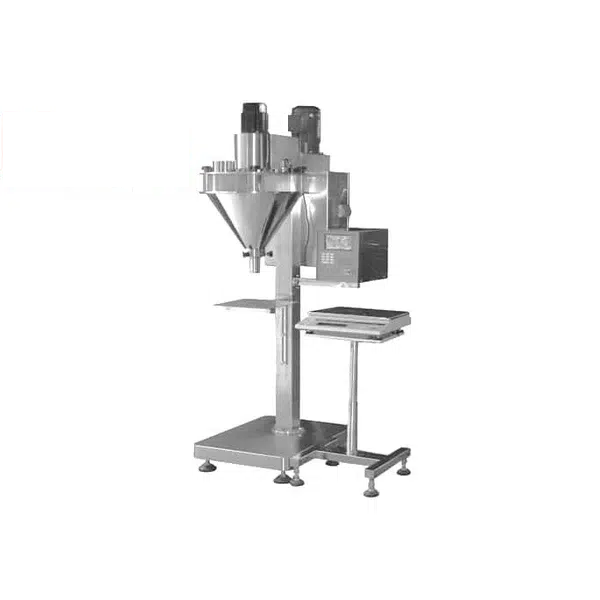

Auger Powder Filler
Fill Weight: 10–1000 g
Filling Accuracy: ≤±1% (≤100 g); ≤±0.5% (100–1000 g)
Filling Speed: 40–120 bags/min
Power Supply: 3-phase 380 V, 50 Hz
Total Power: 1.0 / 1.5 kW
Footprint: 1300 × 850 × 1850 mm
Horizontal Pouch Packing Machines — regulated retail packs
Zipper pouches configured to jurisdiction requirements — format confirmed per market.
PP180FS Horizontal Pouch Packing Machine
Production Rate: 9,600 packs/hour (160 packs/min); actual speed depends on product and fill weight
Applicable Materials: Raw pulp, liquid and sauce/paste products
Pouch Size Range: Width 50-90 mm, height 100-280 mm
Max. Filling Weight: 200 g (depends on product type)
Filling Accuracy: ±1.5%
Packing Materials: PE, PP, CPP, OPP, PET, PA (NY), VMPET / VMCPP foil pouches, foil paper bags
Total Power: 6 kW
Power Supply: 220V / 380V / 450V
Air Consumption: 0.6 m³/min
Air Pressure: 0.6 MPa
Machine Weight: 2,600 kg
Dimensions (L×W×H): 3650 × 1530 × 1180 mm
Frame Material: 304 stainless steel housing; coated carbon steel frame
Core Components: AirTAC pneumatics; Inovance (China) PLC, VFD and touchscreen; Zhongde (China) vacuum pump
PP200F Horizontal Pouch Packing Machine
Production Rate: 8,400 packs/hour (140 packs/min); actual speed depends on product and fill weight
Applicable Materials: Raw slurry, liquid and paste products
Pouch Size Range: Width 50-100 mm, height 100-280 mm
Max. Filling Volume: 300 ml (depends on product type)
Filling Accuracy: ±1.5%
Packing Materials: PE, PP, CPP, OPP, PET, PA (NY), VMPET / VMCPP foil pouches, foil paper bags
Total Power: 6 kW
Power Supply: 220V / 380V / 450V
Air Consumption: 0.6 m³/min
Air Pressure: 0.6 MPa
Machine Weight: 2,600 kg
Dimensions (L×W×H): 4000 × 1270 × 1535 mm
Frame Material: 304 stainless steel housing; coated carbon steel frame
Core Components: SMC (Japan) pneumatics; Siemens PLC, VFD and touchscreen; ORION (Japan) oil-free vacuum pump
PP180D Horizontal Pouch Packing Machine
Production Rate: 6,000 packs/hour (100 packs/min); actual speed depends on product and fill weight
Applicable Materials: Liquids, granules, pills, capsules and similar products
Pouch Size Range: Width 50-90 mm, height 100-280 mm
Max. Filling Weight: 200 g (depends on product type)
Filling Accuracy: ±1.5%
Packing Materials: PE, PP, CPP, OPP, PET, PA (NY), VMPET / VMCPP foil pouches, foil paper bags
Total Power: 4 kW
Power Supply: 220V / 380V / 450V
Air Consumption: 0.6 m³/min
Air Pressure: 0.6 MPa
Machine Weight: 2,000 kg
Dimensions (L×W×H): 2980 × 1345 × 1340 mm
Frame Material: 304 stainless steel housing; coated carbon steel frame
Core Components: SMC (Japan) pneumatics; Siemens PLC, VFD and touchscreen; ORION (Japan) oil-free vacuum pump
PP420F Horizontal Pouch Packing Machine
Production Rate: 1,800 packs/hour (30 packs/min); actual speed depends on product and fill weight
Applicable Materials: Bag-in-bag, liquid, sauce/paste, solid and powder products
Pouch Size Range: Width 80-210 mm, height 100-300 mm
Max. Filling Volume: 1,000 ml (depends on product type)
Filling Accuracy: ±1.5%
Packing Materials: PE, PP, CPP, OPP, PET, PA (NY), VMPET / VMCPP foil pouches, foil paper bags
Total Power: 4 kW
Power Supply: 220V / 380V / 450V
Air Consumption: 0.6 m³/min
Air Pressure: 0.6 MPa
Machine Weight: 500 kg
Dimensions (L×W×H): 1503 × 823 × 1000 mm
Frame Material: 304 stainless steel housing; coated carbon steel frame
PP400 Horizontal Pouch Packing Machine
Production Rate: 3,000 packs/hour (50 packs/min); actual speed depends on product and fill weight
Pouch Size Range: Width 55-200 mm, height 100-280 mm
Max. Filling Volume: 1,000 ml (depends on product type)
Applicable Materials: Powders, liquids, granules and similar products
Filling Accuracy: ±1.5%
Packing Materials: PE, PP, CPP, OPP, PET, PA (NY), VMPET / VMCPP foil pouches, foil paper bags
Total Power: 4 kW
Power Supply: 220V / 380V / 450V
Air Consumption: 0.6 m³/min
Air Pressure: 0.6 MPa
Machine Weight: 2,000 kg
Dimensions (L×W×H): 2900 × 1000 × 1360 mm
Frame Material: 304 stainless steel housing; coated carbon steel frame
Core Components: SMC (Japan) pneumatics; Siemens PLC, VFD and touchscreen; ORION (Japan) oil-free vacuum pump
PP180F Horizontal Pouch Packing Machine
Production Rate: 9,600 packs/hour (160 packs/min); actual speed depends on product and fill weight
Applicable Materials: Raw pulp, liquid and viscous sauce products
Pouch Size Range: Width 50-90 mm, height 100-280 mm
Max. Filling Volume: 200 ml (depends on product type)
Filling Accuracy: ±1.5%
Packing Materials: PE, PP, CPP, OPP, PET, PA (NY), VMPET / VMCPP foil pouches, foil paper bags
Total Power: 6 kW
Power Supply: 220V / 380V / 450V
Air Consumption: 0.6 m³/min
Air Pressure: 0.6 MPa
Machine Weight: 2,500 kg
Dimensions (L×W×H): 3650 × 1530 × 1180 mm
Frame Material: 304 stainless steel housing; coated carbon steel frame
Core Components: AirTAC pneumatics; Inovance (China) PLC, VFD and touchscreen; Zhongde (China) vacuum oil pump
PP180 Horizontal Pouch Packing Machine
Production Rate: 3,000 packs/hour (50 packs/min); actual speed depends on product and fill weight
Applicable Materials: Liquids, granules, pills, capsules and similar products
Pouch Size Range: Width 55-200 mm, height 100-280 mm
Max. Filling Weight: 1,000 g (depends on product type)
Filling Accuracy: ±1.5%
Packing Materials: PE, PP, CPP, OPP, PET, PA (NY), VMPET / VMCPP foil pouches, foil paper bags
Total Power: 4 kW
Power Supply: 220V / 380V / 450V
Air Consumption: 0.6 m³/min
Air Pressure: 0.6 MPa
Machine Weight: 2,000 kg
Dimensions (L×W×H): 2980 × 1345 × 1340 mm
Frame Material: 304 stainless steel housing; coated carbon steel frame
Core Components: SMC (Japan) pneumatics; Siemens PLC, VFD and touchscreen; ORION (Japan) oil-free vacuum pump
PP320 Horizontal Pouch Packing Machine
Production Rate: 4,200 packs/hour (70 packs/min); actual speed depends on product and fill weight
Applicable Materials: Powders, liquids, solids and similar products
Pouch Size Range: Width 60-160 mm, height 100-280 mm
Max. Filling Volume: 1,000 ml (depends on product type)
Filling Accuracy: ±1.5%
Packing Materials: PE, PP, CPP, OPP, PET, PA (NY), VMPET / VMCPP foil pouches, foil paper bags
Total Power: 7 kW
Power Supply: 220V / 380V / 450V
Air Consumption: 0.6 m³/min
Air Pressure: 0.6 MPa
Machine Weight: 2,500 kg
Dimensions (L×W×H): 3500 × 1000 × 1390 mm
Frame Material: 304 stainless steel housing; coated carbon steel frame
Core Components: SMC (Japan) pneumatics; Siemens PLC, VFD and touchscreen; ORION (Japan) oil-free vacuum pump
Complete the Line — cartoning, blister and sleeving
Cartoning takes counted packs into shelf-ready cases — one line, one partner. Close the line behind the packer: JC130 and JCH200 cartoners, JCP100, JCP180 and JCP270 blister machines, JCJ130 and JCS130 bag sleevers.
JC130 Horizontal Cartoning Machine
Production Rate: 20-60 cartons/min (carton- and product-dependent)
Carton Material: 250-400 g/m² board
Carton Size Range (L×W×H): 70-210 mm × 60-150 mm × 15-60 mm
Medical-Build Window: Quoted medical build verified at 80-110 × 80-110 × 30-90 mm — checked per carton
Carton Styles: Tuck-in, auto-lock bottom, hang-tab
Feeding: 4-station product auto feeder; 5- and 10-station feeders to order; carton erecting, insertion and sealing
Options: Leaflet folding device; glue-sealing unit; single-side label sealing unit
Rejection: Auto-reject for cartons missing product or leaflet; overload auto-stop
Control Set: Siemens PLC, touchscreen, frequency converter and servo; SMC valves, cylinders, vacuum and air preparation; Sick and Omron sensors
Compressed Air: ≥0.6 MPa, 120-160 L/min
Total Power: 1.5 kW, 220/380 V / 50 Hz
Machine Weight: 2,800 kg
Dimensions (L×W×H): 4620 × 1210 × 1800 mm
JCH200 High-Speed Cartoning Machine
Production Rate: 200 cartons/min
Carton Styles: Tuck-in, auto-lock bottom, hang-tab
Product Family: Coffee and snack pouches, sachet multipacks, bottled pharma, kit sets — the JC cartoning range
Configuration: Built to order around your carton and product
How to Choose a CBD Packing Machine
Eight decisions frame the specification. Work them in order and the machine ends up matched to the product, not the other way round.
1. Product Type
The product — gummy, powder or liquid — sets the machine family before anything else.
2. Throughput
Single-dose counts vs retail multipack volumes.
3. Film Material
Barrier films with print registration; child-resistant considerations may add material requirements.
4. Seal Technology
Sealing proven against oil-rich gummy formulations.
5. Package Format
Single-dose sachet, pillow pack, multipack or pouch.
6. Hygiene and Food Contact
Your jurisdiction's rules lead the specification — state and national frameworks differ.
7. Configuration and Delivery
Compliance-driven configuration extends timelines — bring the requirements first.
8. Run the Numbers
Shortlist machines before you quote — enter product size, format and target output in the free selector at tool.path-pack.com; it returns matching machine families and film widths in one pass.
Frequently Asked Questions
Can you pack CBD gummies?
Yes — gummies run the same flow-wrapping routes as mainstream confectionery: singles for dose-defined formats, counted multipacks for retail. Oil-rich recipes get a seal review first.
Do you make child-resistant packaging?
Child-resistance is a closure-and-pack system decision — we configure machines to run the compliant formats your regulation requires, working with your packaging supplier.
What formats work for CBD powders?
Premade sachets on the PP series with auger dosing — the dose-defined, print-registered format supplement markets use.
Which markets can you support?
Machine builds follow your market's rules — tell us the jurisdiction and the specification is written against it.
How much does a CBD packaging machine cost?
CBD edibles and pouch products price by format — flow wrap for singles, pouches for multipacks. Send your product and output target and we quote in writing.
Why Path Pack
We start with the product, not the machine. Every project runs through the same nine-step engineering process — product, format, film, speed, feeding, sealing, structure, integration, testing — before a configuration is quoted.
Your products run on real machines with your film at your target speed before anything ships. Formulation behaviour and seal integrity are proven, not promised.
Evaluate your requirements with our online tools: the machine finder and bag calculator narrow the configuration before you ever talk to us.
English
Spanish
French
German
Korean
Russian
Italian
Arabic
